LVDS to USB 3.0 Interface Board

Integrate Sony Functional Camera Block to any Standard USB Host

🎥 Watch the full video here:
👉 https://youtu.be/36J7ervP0Nc

The Oppila LVDS → USB 3.0 Interface Board is a compact, high-performance interface solution built to convert the LVDS output of Sony FCB-EV and Tamron block cameras into USB 3.0 UVC video. It delivers Full HD 1080p60, plug-and-play connectivity, and industrial-grade reliability—making it ideal for advanced vision systems.

This blog provides a clear and professional overview of the board’s capabilities, applications, and architecture.

LVDS → USB3 Interface Board

The Oppila LVDS–USB3 Interface Board bridges Sony FCB block cameras (ex: FCB-EV9500L, FCB-EV9520L) to any USB 3.0 host, providing:

1080p60 Full HD streaming.
USB 3.0 SuperSpeed UVC 1.1 output.
VISCA camera control via USB CDC or UART TTL.
Native support for Windows & Linux.
Compact industrial-grade design (50 × 60 mm).

This powerful converter is widely used in AI vision, surveillance, automation, and embedded imaging solutions.

Applications

The board is engineered for use in:

Security & Surveillance.
Industrial Machine Vision.
Medical Imaging Systems.
Robotics & Automation.
Broadcast & Videography.
UAV / ROV Vision Payloads.
Research & Product Development.
AI Edge Computing.

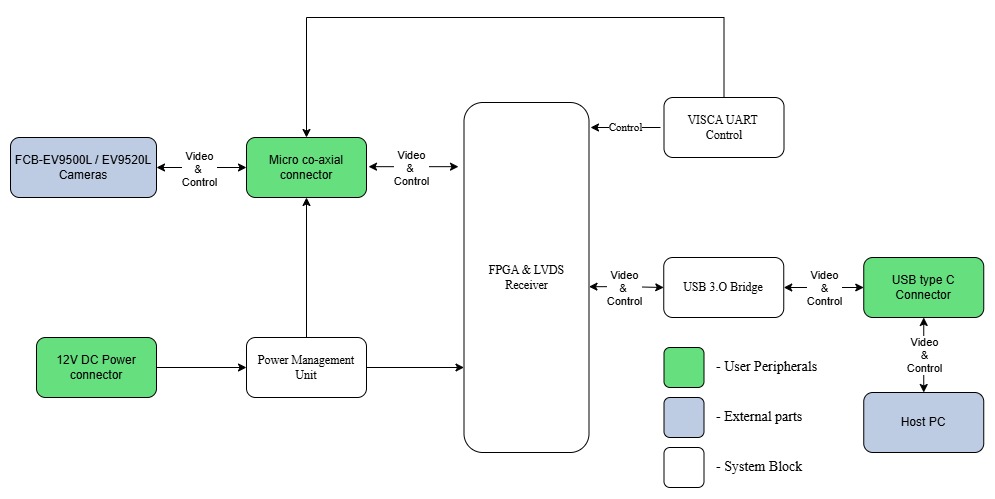

Board Block Diagrams

This diagram highlights the LVDS to USB3 processing flow, from camera interface to UVC output.

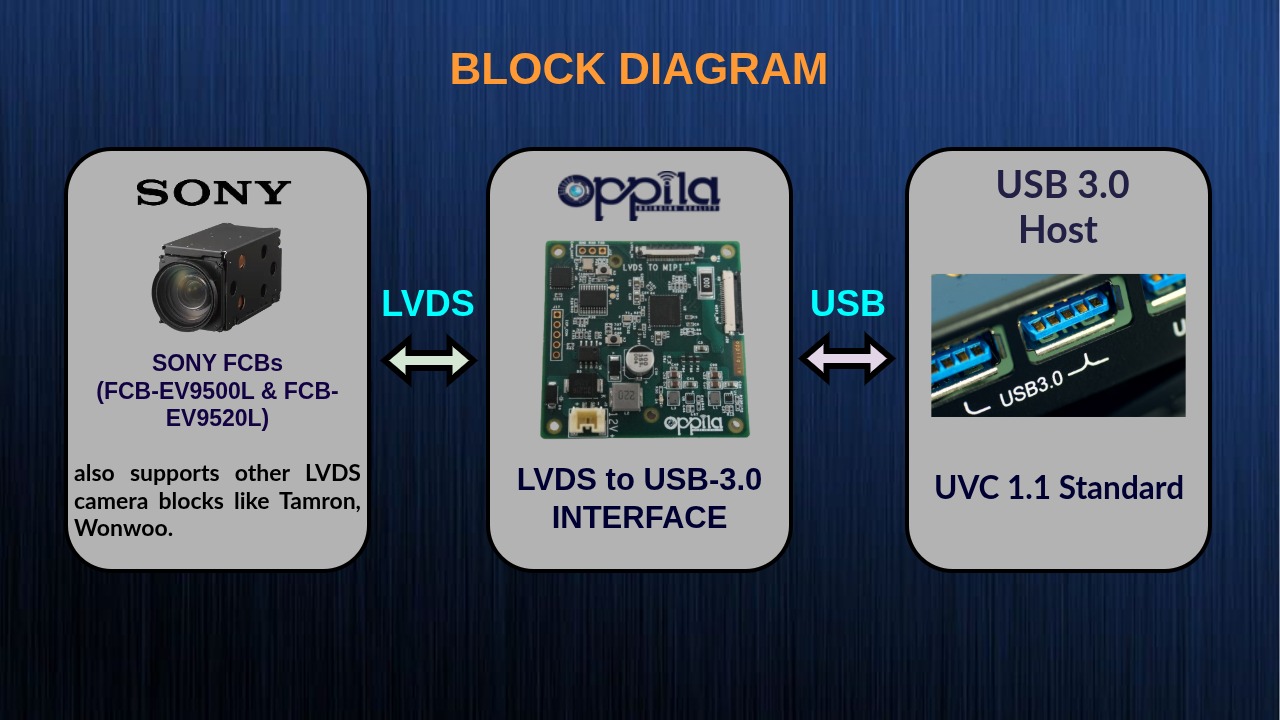

System Architecture / Setup Diagram

This setup demonstrates:

Camera connection via LVDS.
USB Type-C SuperSpeed link to PC.
Power input.
Optional VISCA control through USB or UART.

Key Features

Converts Sony/Tamron FCB LVDS to USB 3.0.
Full HD 1080p @ 60 fps (UVC 1.1).
USB 3.0 SuperSpeed (5 Gbps).
Supports VISCA over USB CDC & UART TTL.
DIP-switch selectable control mode.
Wide-temperature design (–40°C to +85°C).
Plug-and-play on Windows & Linux.
Compact, rugged, and RoHS compliant.

Product Details

For complete specifications, kit contents, product images, pricing, and documentation, visit:
👉
